SC APC SC UPC Gpon Optical Network Terminal 4GE+11AC WIFI+POTS OLT Port Gepon

Product Categories
ZISA Technologies (Beijing) Inc.
Contact Now

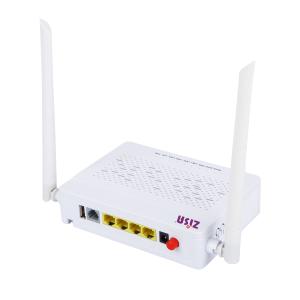

SC APC SC UPC Gpon Optical Network Terminal 4GE+11AC WIFI+POTS OLT Port Gepon

Brand Name : ZISA

Model Number : OP156-AC

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : 42-46USD

Payment Terms : T/T

Supply Ability : 10000PCS

Delivery Time : 5-8weeks

Packaging Details : box 0.5kg

Name : Fiber ONU 4GE+11AC WIFI+POTS

Uplink : Pon

Port : SC/APC or SC/UPC

Type : ONU

Warranty : 1 YEAR

Power supply : 12V 1A

Weight : 0.5kg

Contact Now

SC/APC/UPC 4GE+11AC WIFI+POTS GPON OLT Port Gepon Gpon Optical Network Terminal

Product Features

  • comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
  • support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate
  • support bidirectional FEC and RS(255,239) FEC CODEC
  • support 32 TCONT and 32 GEMPORT
  • support AES128 decryption function of G.984 standard
  • support SBA and DBA dynamically broadband allocation
  • support the PLOAM function of G.984 standard
  • support Dying-Gasp check and report
  • support synchronous Ethernet
  • good interworking with the OLT from different manufacturers,such as HuaWei ,ZTE,Cortina etc
  • down-link LAN ports: 4*10/100/1000M with auto-negotiation
  • support the rogue ONU alarm function
  • Support VLAN function
  • operation mode: HGU
  • support IEEE802.11b/g/n and IEEE802.11ac standard for WIFI
  • antennas gain: 5DBi with external
  • support: 300Mbps PHY rate IEEE802.11n, 866Mbps PHY rate IEEE802.11ac
  • support multiply SSID
  • Multiple encryption methods:WFA,WPA,WPA2,WAPI
  • one port for VOIP,support SIP protocol optional
  • comply fully with IEEE802.3ah standard and CTC-3.0 specification
  • one RF port for TV application

WIFI characteristics

Techfeatures Description
antenna 2T2R Mode;gain:5dBi
rate 300Mbps IEEE802.11n 866 Mbps IEEE802.11ac The number of channel :13 for wifi4;12 for wifi5
encryptionmethods WFA,WPA,WPA2,WAPI
Txpower 17dBm for 2.4GHz ;19dBm for5GHz
Rx sensitivity

WIFI4:-59dBm @ channel 11 MCS7;

WIFI5:-50dBm @ channel 155 AC80;
WPSfunction Support

VOIP Technical features

Techfeatures Description

Voltage andCurrentMonitoring

 The continuously monitors the TIP,RING,and battery voltages and currents via anon-chipMonitorADC
protocol

Protocol : SIP;

Codec type selection :G722,G729,,G711A,G711U,

FAX:T38;

ThermalOverloadShutdown

 Ifthedietemperatureexceedsthemaximumjunctiontemperaturethreshold,thedevicewillshutitselfdown

Packing list­

Name Quantity Unit
OP156-AC 1 pcs
supplypower 1 pcs
Manual&warrantycard 1 pcs

Company Profile:

ZISA Technology Limited was created in 2004, based in Beijing.

We are an innovative ICT company for more than 10 years.

ZISA is committed to providing the professional service and solutions to oversea customers, making continuous innovation to meet the requirements of customers.As a global market company, ZISA Fibre PON equipment, wireless AP solutions and xDSL solutions have been reached over 30 countries and regions.

Our team are full of creative and energetic engineers and workers.The innovative,comprehensive IT technique was grasped by us.Some of them has been worked in famous companies.The factory which cooperate with us is T&W with huge productivity.We also have flexible selling module---ODM&OEM,as agent are all welcome.
